EAN kods8595568942302
Muitas kods85369010
Svars2,8707 kg/Gab.
Kvēlojošas stieples tests650 °C
Mehāniskā aizsardzībaIK07
Platums223 mm
Augstums250 mm
Dziļums75 mm
UgunsnoturībaP90-R, E90, PS90
Aizsardzības pakāpeIP40
Ugunsizturības standartiČSN 73 0895, DIN 4102-12, STN 92 0205

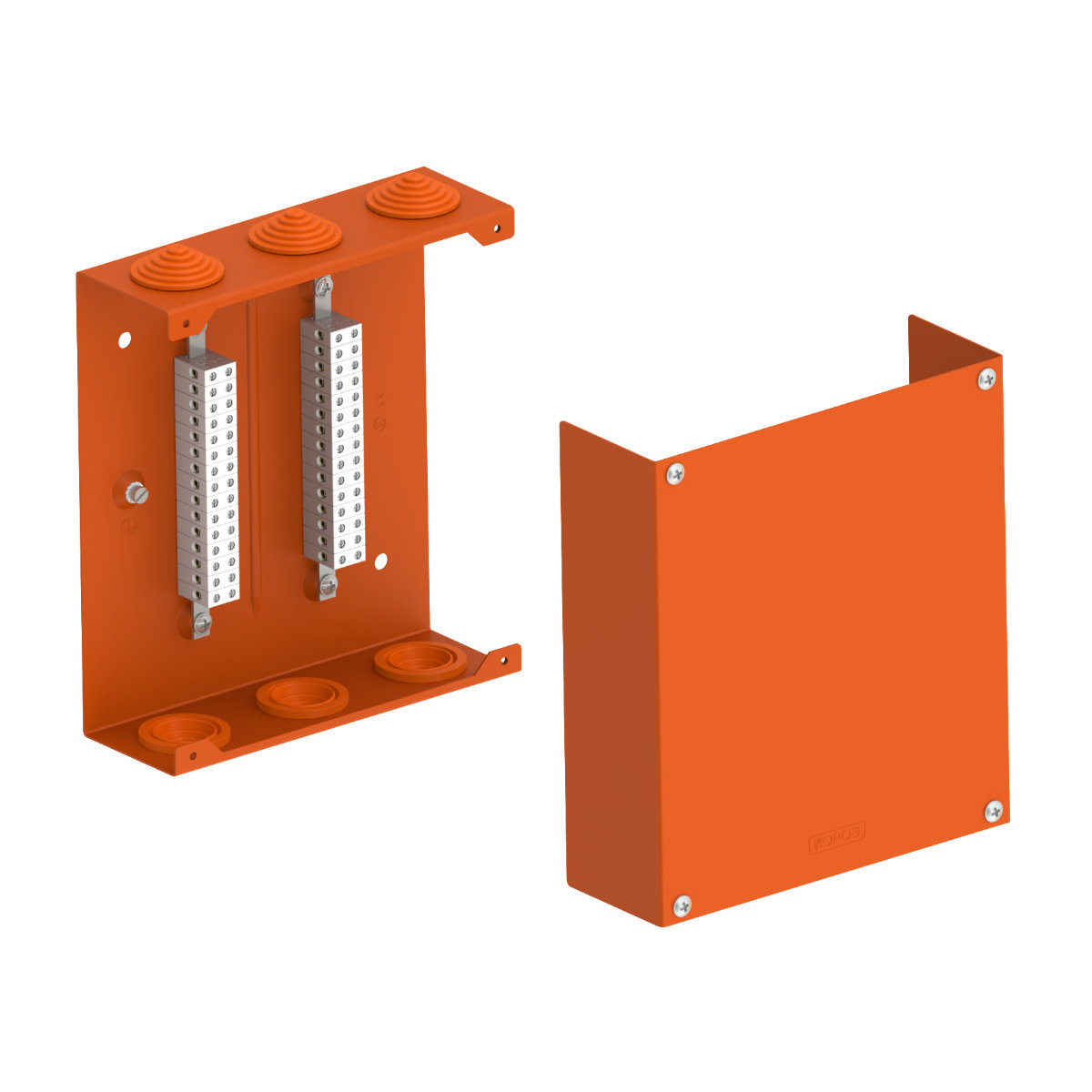

These are metal boxes with ceramic terminals for conductors with functional integrity. Use in special applications such as protected and unprotected escape routes. The boxes are designed for use with data cables. Fire-resistant boxes are made from galvanized sheet metal, which is then coated with a polyester UV-resistant paint. The cable entry passages are made from soft plastic material, allowing easy cable insertion into the box. The boxes are mounted by using the included screws for concrete (SB 3.5x45, included in the package).
