KPR68D_EN
| EAN kods | 8595568932334 |
| Muitas kods | 85363030 |
| Svars | 0,05 kg/pcs |
| Materiāls | PVC |
| Halogēnus nesaturošs materiāls | yes |
| Pašnodziestošs | 30 s |
| Nominālais spriegums | <= 400 V |
| Nominālā strāva | <= 16 A |
| Temperatūras izturība | -5 - 60 °C |
| Kvēlojošas stieples tests | 850 °C |

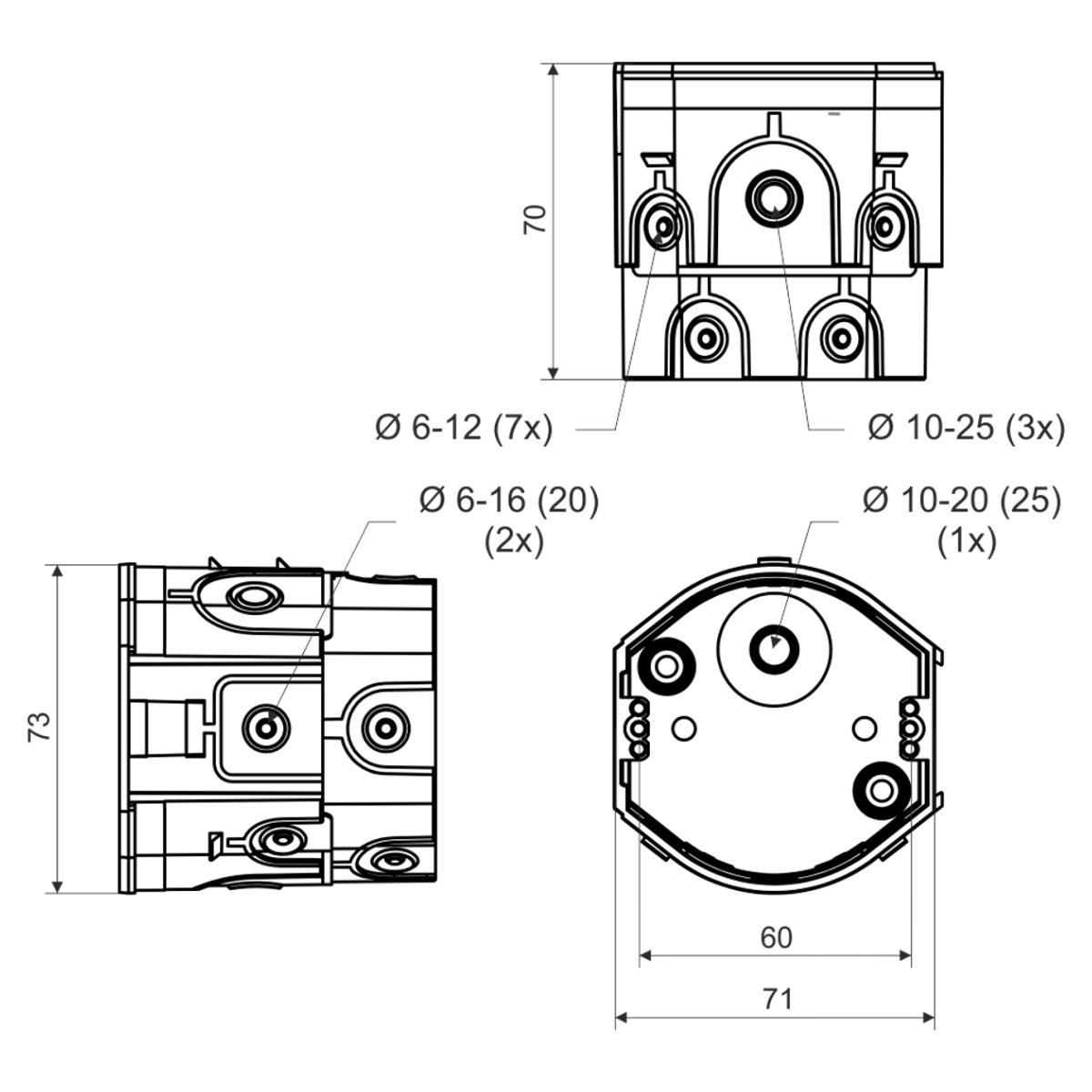

| Diametrs | 73 mm |
| Dziļums | 70 mm |
| Frēzētās (urbtās) atveres diametrs | 80 mm |
| Uguns reakcijas klase materiālam uz kā tiek uzstādīts produkts | A1 - F |
| Atstarpe, savienojot divas kārbas | 71 |
| Ļauj montēt dubultu kontaktligzdu | yes |
| Saskaņā ar standartiem | ČSN EN 60 670-1 |
| Iepakojuma apraksts boxes fitted with instrument screws and loosely packed into the carton | |
Easy installation of devices with great depth. Connection in a continuous row with a spacing of 71 mm possible. The boxes KPR 68/D can be connected to KP 68 / D box or to each other. Inlet openings made of flexible material. The installation of the cable or pipe is performed by tearing out the prepressed inlet on the flexible membranes and inserting the cable or pipe into the created hole. Ensured airtightness of the passage even when the cable or pipe is inserted. Suitable for low-energy or passive houses. Protected by a European industrial design and Utility model trademark.
